The Range
Horse Floats
Designed and built in Australia using composite fibreglass and marine-grade aluminium for high strength and exceptionally low weight — paired with smooth-ride suspension for the calmest journey your horse has ever had.
Model Range
Find your float
Four signature builds — from nimble day-trip floats to the flagship gooseneck.

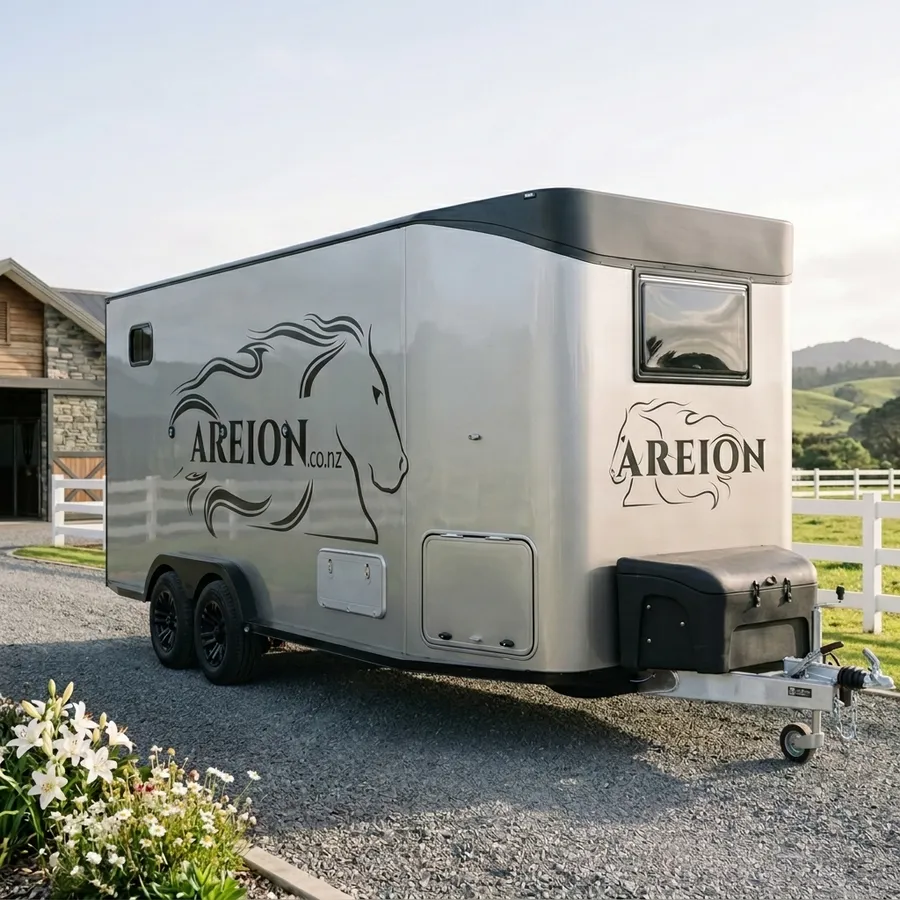

Weekend Glamping
Overnighter
Compact living quarters for shows, clinics and longer weekends away.
Enquire

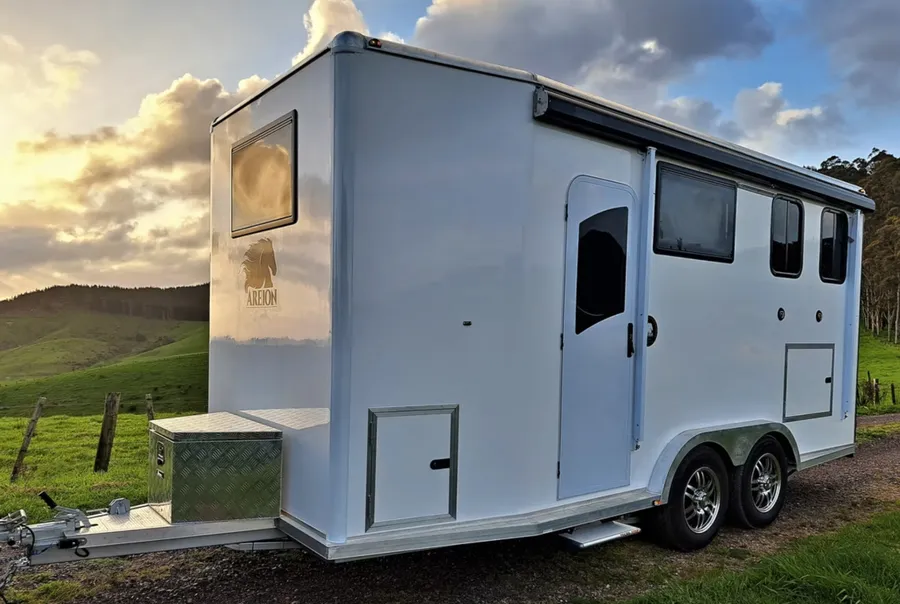

Full Luxury
Adventurer
Full-feature float with premium living quarters for serious time on the road.
Enquire

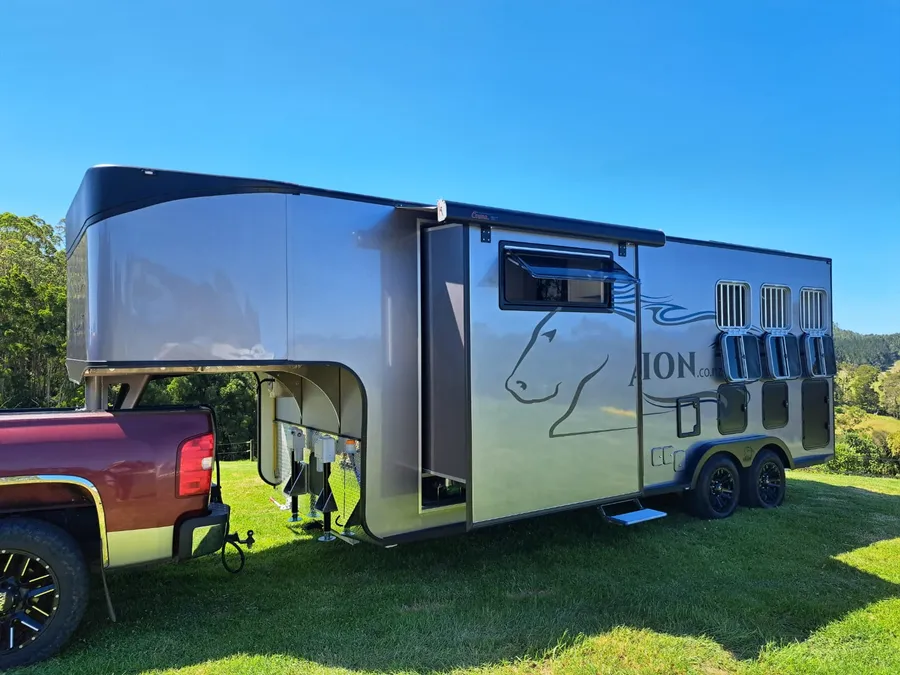

The Flagship
Ultimate Gooseneck
Our top-of-range gooseneck — bespoke layouts, full living, uncompromising finish.
EnquireSpecification
Customise your float
Every Areion float starts from our proven base spec and is tailored to you.
Construction
- Marine-grade aluminium chassis
- Composite fibreglass foam-core walls and roof
- Aluminium flooring with rubber overlay
- Fully sealed and corrosion-free
On the Road
- Alloy wheels with matching spare tyre
- Electric braking system
- Heavy-duty jockey wheel
- Aluminium running boards
- LED road lighting

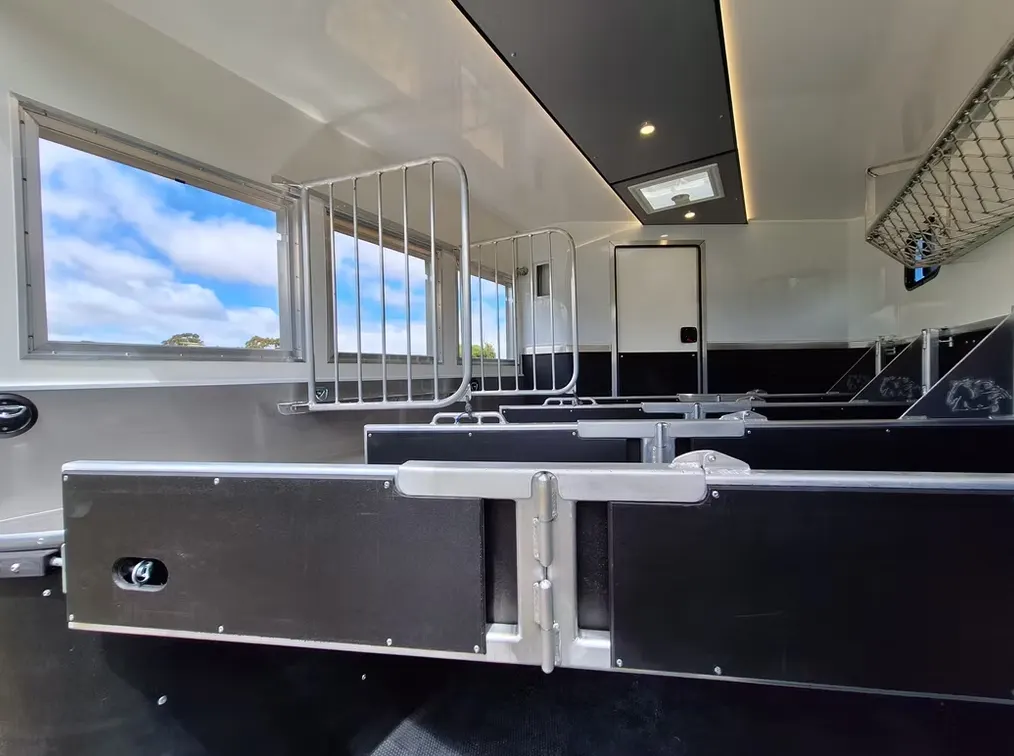

Horse Area
- Stainless steel latches and tie hooks
- Non-slip rubber flooring with drains
- Polyethylene kick walls
- Removable adjustable dividers
- Sliding windows with flyscreens
- Roof vents and interior LED lighting
- Saddle rack and lockable side door
- Fold-away step with insect screen
Plus, every float includes
- Fully insulated throughout
- Fully lockable
- Australian road compliance certificate
- 12-month registration
Specs
Dimensions & pricing
Indicative starting pricing — final quotes are tailored to your build.
2-Horse Standard
From $34,900
- Internal
- 3.2 × 1.85 × 2.3 m
- External
- 4.1 × 2.1 × 2.6 m
- Horse bay
- Standard 16.2hh
- Approx. weight
- ~1,250 kg
2-Horse Extended
From $39,500
- Internal
- 3.6 × 1.9 × 2.4 m
- External
- 4.5 × 2.15 × 2.7 m
- Horse bay
- Extended 17hh+
- Approx. weight
- ~1,380 kg
3-Horse Angle Load
From $48,900
- Internal
- 4.6 × 2.0 × 2.4 m
- External
- 5.5 × 2.25 × 2.7 m
- Horse bay
- Angle load 16.2hh
- Approx. weight
- ~1,650 kg
